Mazda

Normal stock dampers wear out and engine performance upgrades increase naturally occurring harmful crankshaft torsional vibrations. Install a Fluidampr viscous damper to reduce wear on the main bearings and timing gear, achieve more accurate valvetrain operation and lower the risk of crank failure. Unlike rubber based dampers, Fluidampr automatically adapts to any engine modifications and constantly self-tunes in real time to protect across the entire RPM range. Features precision machined and computer balanced components that never need to be tuned or rebuilt.

SFI Approved / ISO 9001 Certified / Made in the USA

Mazda MX-5 Miata

1993-2005

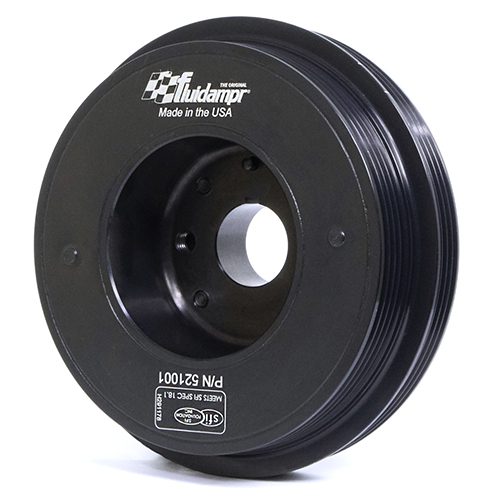

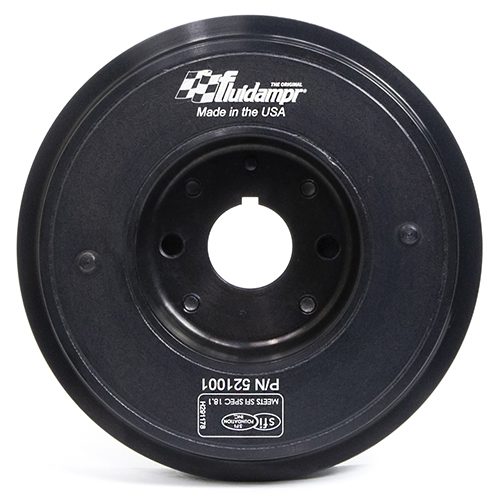

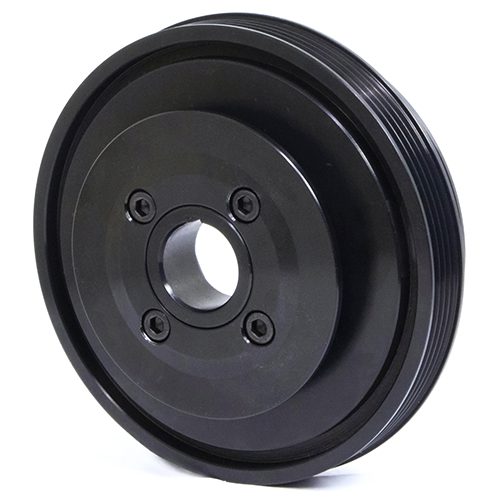

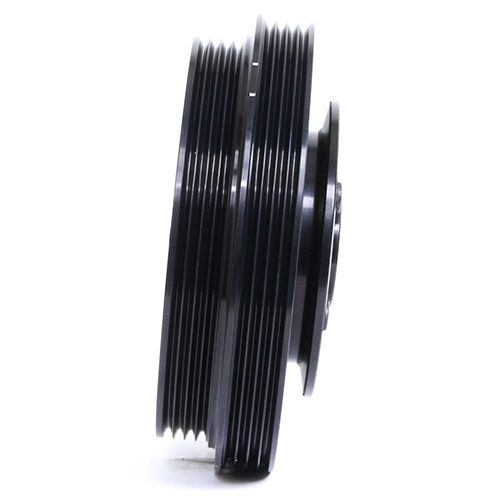

PART # 521001
Fitment 1993 – 2005 Mazda MX-5 Miata
1992 – 1996 Mazda MX3 (1.6L I4 models)
1995 – 2003 Mazda Protégé 1.5L / 1.6L / 1.8L
Bore Diameter 1.499"
Degree Marking Range TDC.  10 deg reference mark.
Degree Markings Engraved
Engine Balance Internal
Finish Black Zinc
Keyway Dowel pin hole
Length 1.59"
Material Steel

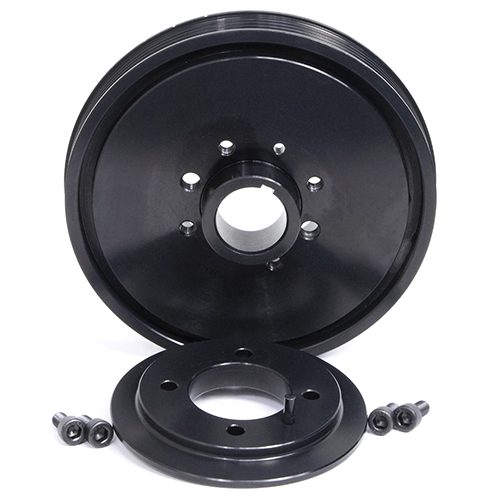

Mounting Hardware Included Yes.  4x grade 12.9 M6 x 16mm bolts.
Outside Diameter 5-1/4"
Safety Rating SFI 18.1
Weight / Rotating Weight 5.2 lbs / 3.4 lbs

Mazda / Ford / Lincoln / Mercury

PART # 571001
Fitment 2001-2009 Ford / Mazda. 3.0L Duratec V6.
Bore Diameter 1.2475"
Degree Marking Range 1 timing mark
Degree Markings Engraved
Engine Balance Internal
Finish Black Zinc
Keyway Single
Length 2.460"
Material Steel
Mounting Hardware Included No
Outside Diameter 5-7/8"
Pulley Size 10% Underdrive Pulley 2003-2008
Safety Rating SFI 18.1
Weight / Rotating Weight 8.1 lbs / 5.4 lbs
