Dodge Cummins®

Dodge cummins vs chevy cummins.

Protect your truck with the technology high power diesel OEMs use. A Fluidampr performance diesel damper provides premium, broad range control of destructive crankshaft torsional vibration for optimum performance and durability. Install Fluidampr to reduce wear on critical internal engine components when engine modifications are done to gain horsepower or when rotating assembly parts are upgraded. Features high quality, long lasting viscous silicone with precision CNC machined and computer balanced high-grade steel components. No tuning or maintenance required.



Dodge Cummins®

Internally Balanced
PART # 960311
Fitment 1989-1998 Dodge. 5.9L Cummins 12v. Cummins 4BT Standard.
Bore Diameter NA
Degree Marking Range 2 notches for sensor pick up.
Degree Markings No
Engine Balance Internal
Finish Black Zinc
Keyway Drill pin kit #300002 recommended over 3500RPM
Length 2.617"
Material Steel
Mounting Hardware Included Sensor Relocation Kit #300003 included. Recommend Fluidampr #300002 over 3,500rpm; #300007 up to 700hp / 1,250ft-lbs; #300008 above 700hp / 1,250ft-lbs.
Outside Diameter 9-3/4"
Safety Rating SFI 18.1
Weight / Rotating Weight 25.0 lbs / 16.7 lbs

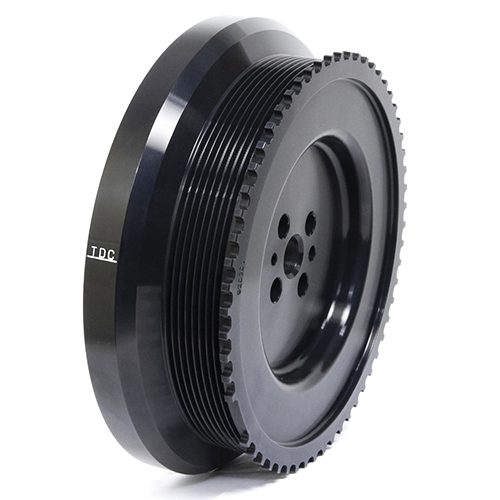

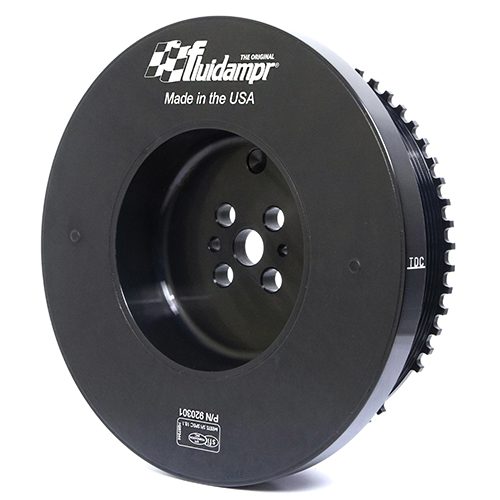

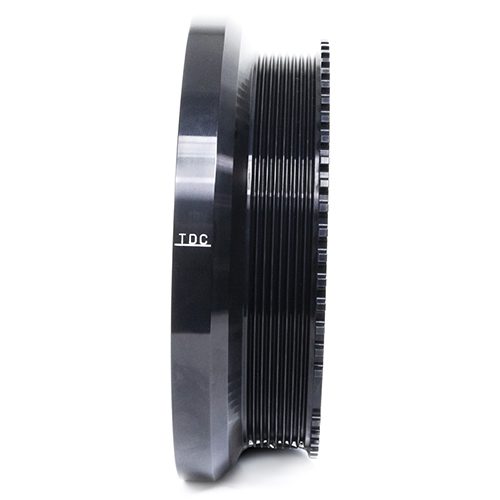

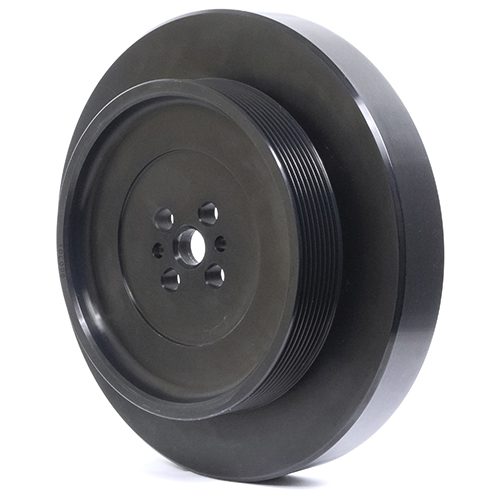

PART # 960301
Fitment 1998.5-2002 Dodge. 5.9L Cummins 24v.
Bore Diameter NA
Degree Marking Range None
Degree Markings No
Engine Balance Internal
Finish Black Zinc
Keyway Drill pin kit #300002 recommended over 3500RPM
Length 2.617"
Material Steel
Mounting Hardware Included No. Recommend Fluidampr #300002 over 3,500rpm; #300007 up to 700hp / 1,250ft-lbs; #300008 above 700hp / 1,250ft-lbs.
Outside Diameter 9-3/4"
Safety Rating SFI 18.1
Weight / Rotating Weight 24.9 lbs / 16.6 lbs


PART # 920301
Fitment 2003-2009 Dodge. 5.9L Cummins.
Bore Diameter NA
Degree Marking Range 1 timing mark
Degree Markings Engraved
Engine Balance Internal
Finish Black Zinc
Keyway Drill pin kit #300002 recommended over 3500RPM
Length 2.462"
Material Steel
Mounting Hardware Included No. Recommend Fluidampr #300002 over 3,500rpm; #300007 up to 700hp / 1,250ft-lbs; #300008 above 700hp / 1,250ft-lbs.
Outside Diameter 9-1/4"
Safety Rating SFI 18.1
Weight / Rotating Weight 26.1 lbs / 17.4 lbs

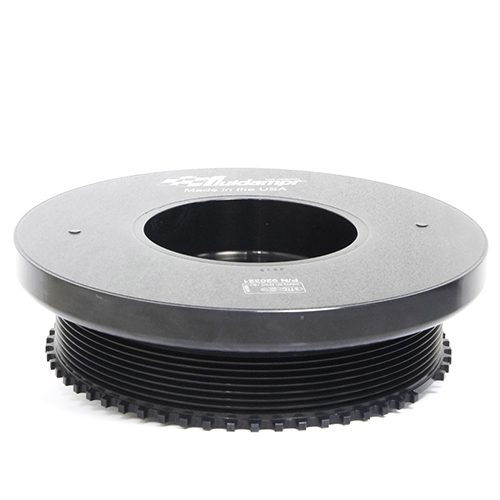

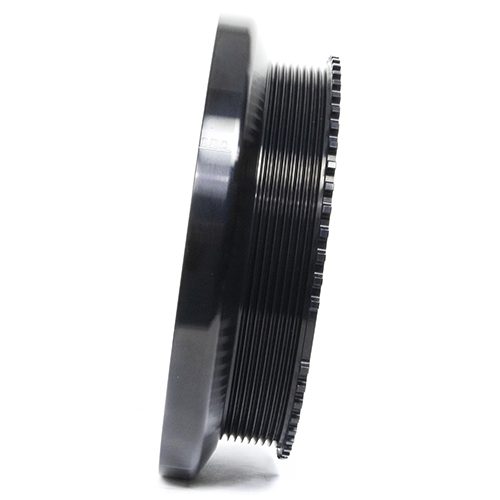

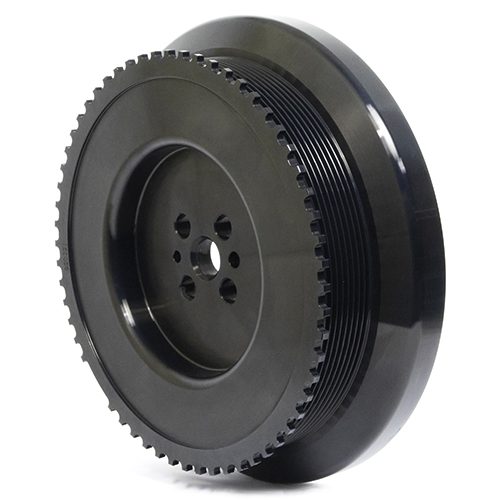

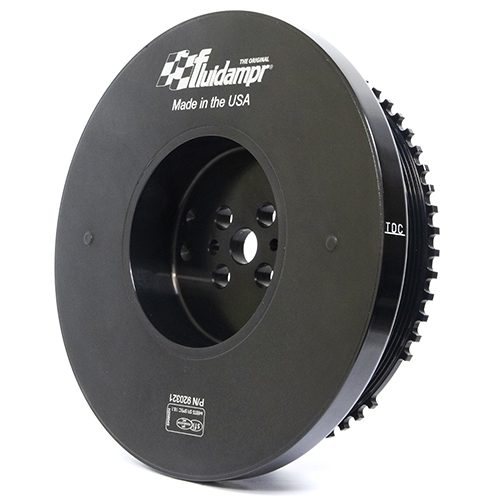

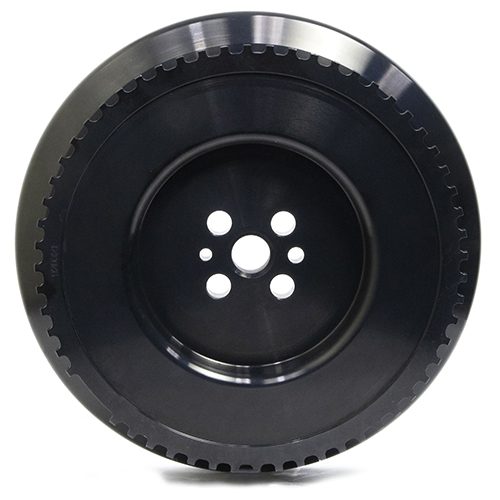

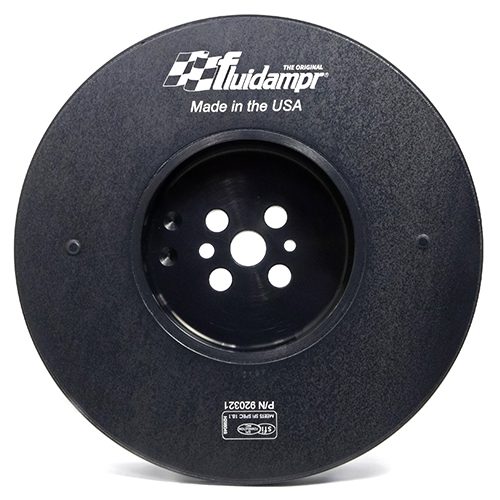

PART # 920321
Fitment 2007.5+ Ram / Dodge. 6.7L Cummins.
Bore Diameter NA
Degree Marking Range 1 timing mark
Degree Markings Engraved
Engine Balance Internal
Finish Black Zinc
Keyway Drill pin kit #300002 recommended over 3500RPM
Length 2.665"
Material Steel
Mounting Hardware Included No. Recommend Fluidampr #300002 over 3,500rpm; #300007 up to 700hp / 1,250ft-lbs; #300008 above 700hp / 1,250ft-lbs.
Outside Diameter 9.525"
Safety Rating SFI 18.1
Weight / Rotating Weight 27.8 lbs / 18.5 lbs


PART # 960341
Fitment 1989 and Up. 5.9L Cummins. Competition series - no pulley.
Bore Diameter NA
Degree Marking Range TDC to 180 at 1 degree increments. Clockwise and counter-clockwise.
Degree Markings Yes
Engine Balance Internal
Finish Black Zinc
Keyway Drill pin kit #300002 recommended over 3500RPM
Length 1.363"
Material Steel
Mounting Hardware Included No. Recommend Fluidampr #300002 over 3,500rpm; #300007 up to 700hp / 1,250ft-lbs; #300008 above 700hp / 1,250ft-lbs.
Outside Diameter 10"
Safety Rating SFI 18.1
Weight / Rotating Weight 25.0 lbs / 16.7 lbs


PART # 980301
Fitment 2003-2018 5.9L / 6.7L Cummins common rail. Competition series - no pulley.
Bore Diameter NA
Degree Marking Range TDC
Degree Markings Yes
Engine Balance Internal
Finish Black Zinc
Keyway Drill pin kit #300002 recommended over 3500RPM
Length 1.90"
Material Steel
Mounting Hardware Included No. Recommend Fluidampr #300002 over 3,500rpm; #300007 up to 700hp / 1,250ft-lbs; #300008 above 700hp / 1,250ft-lbs.
Outside Diameter 10-3/32"
Safety Rating SFI 18.1
Weight / Rotating Weight 28.8 lbs / 19 lbs


Full power kit

Cummins Full Power Kit

1989 and up 5.9L / 6.7L Cummins performance engine builds above 700 hp / 1,250 ft-lbs torque are recommended to use the new Fluidampr Cummins Full Power Kit.  Highly recommended for drag racing and sled pulling.  A ½” thick torque plate with textured finish mounts between the damper face and bolts to provide a wider and stronger clamping surface.  The torque plate incorporates a 5/8” hex head for barring the engine over.  New heat treated, high strength extended length ARP® bolts and a diamond impregnated friction washer are also included.  Use in conjunction with Fluidampr Cummins Drill Pin Kit (p/n 300002) for applications above 3,500rpm.

p/n 300008.  1989+ 5.9L / 6.7L Cummins.
$217.95 MSRP.
