Chevy GM / Duramax


Protect your truck with the technology high power diesel OEMs use. A Fluidampr performance diesel damper provides premium, broad range control of destructive crankshaft torsional vibration for optimum performance and durability. Install Fluidampr to reduce wear on critical internal engine components when engine modifications are done to gain horsepower or when rotating assembly parts are upgraded. Features high quality, long lasting viscous silicone with precision CNC machined and computer balanced high-grade steel components. No tuning or maintenance required.


Chevy GM / Duramax

PART # 800191
Fitment 1982-1993 GM. 6.2L / 6.5L diesel w/ mechanical fuel pump.
Bore Diameter 1.5993"
Degree Marking Range 50 degree BTDC to 10 degree ATDC. Additional timing/degree marks at 90, 180 and 270
Degree Markings Engraved
Engine Balance External
Finish Black Zinc
Keyway Single; (3/16")
Length 3.180"
Material Steel
Mounting Hardware Included No
Outside Diameter 8"
Safety Rating SFI 18.1
Weight / Rotating Weight 17.8 lbs / 11.9 lbs

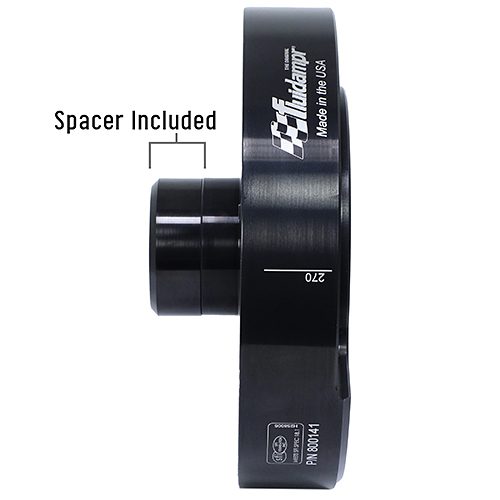

PART # 800141
Fitment 1994-2000 GM/Hummer. 6.2L/6.5L diesel w/ electronic fuel pump.
Bore Diameter 1.5993"
Degree Marking Range 50 degree BTDC to 10 degree ATDC. Additional timing/degree marks at 90, 180 and 270
Degree Markings Engraved
Engine Balance External
Finish Black Zinc
Keyway Single; (3/16")
Length 2.443"
Material Steel
Mounting Hardware Included No
Outside Diameter 8"
Pulley Bolt Pattern
Pulley Finish
Pulley Size
Safety Rating SFI 18.1
Weight / Rotating Weight 17.3 lbs / 11.5 lbs


PART # 890101
Fitment 2001-2005 GM/Chevy. 6.6L Duramax LLY / LB7.
Bore Diameter 1.9300"
Degree Marking Range 1 timing mark
Degree Markings Engraved
Engine Balance External
Finish Black Zinc
Keyway Single; (5mm)
Length 2.858"
Material Steel
Mounting Hardware Included No. Recommend Fluidampr #300010.
Outside Diameter 8-3/8"
Safety Rating SFI 18.1
Weight / Rotating Weight 23.9 lbs / 15.9 lbs


PART # 830111
Fitment 2006-2010 GM/Chevy. 6.6L Duramax LBZ / LMM.
Bore Diameter 1.9300"
Degree Marking Range TDC
Degree Markings Engraved
Engine Balance External
Finish Black Zinc
Keyway Single; (5mm)
Length 2.778"
Material Steel
Mounting Hardware Included No. Recommend Fluidampr #300010.
Outside Diameter 8-3/8"
Safety Rating SFI 18.1
Weight / Rotating Weight 26.2 lbs / 17.5 lbs

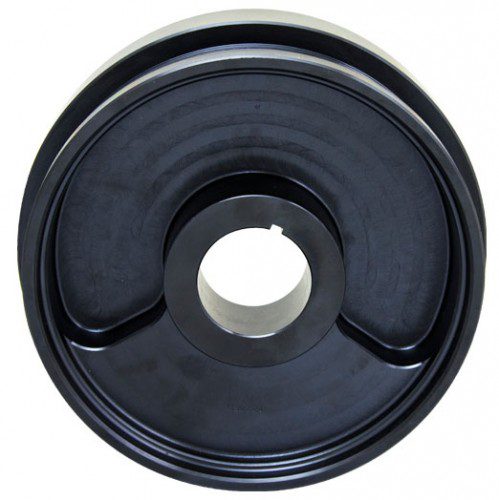

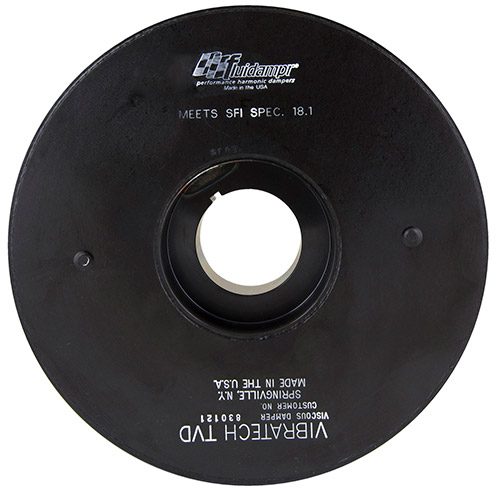

PART # 830121
Fitment 2011-2016 GM/Chevy. 6.6L Duramax LML/LGH.
Bore Diameter 1.9300"
Degree Markings Engraved
Engine Balance External
Finish Black Zinc
Keyway Single; (5mm)
Length 2.858"
Material Steel
Mounting Hardware Included No. Recommend Fluidampr #300010.
Outside Diameter 8-3/8"
Safety Rating SFI 18.1
Weight / Rotating Weight 24.0 lbs / 16.0 lbs

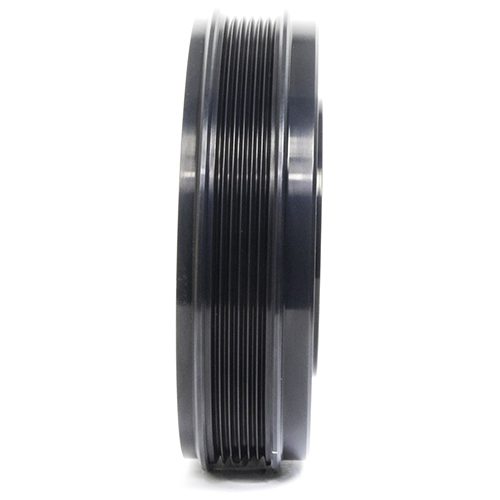

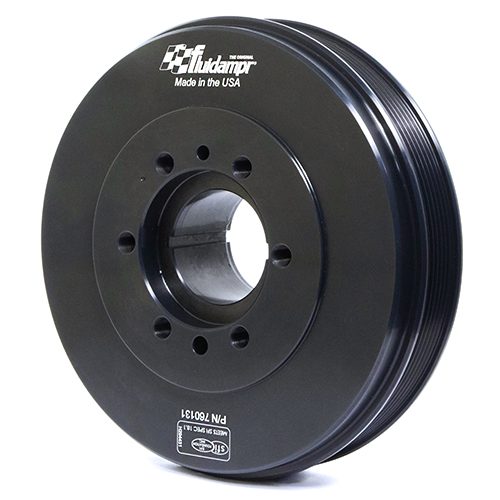

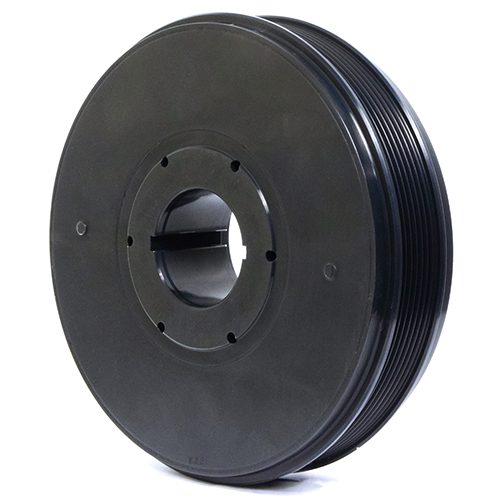

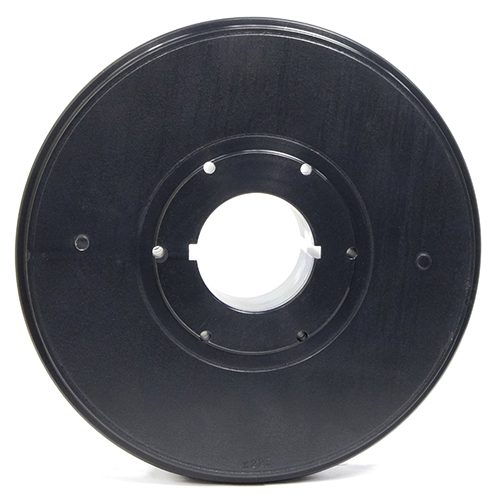

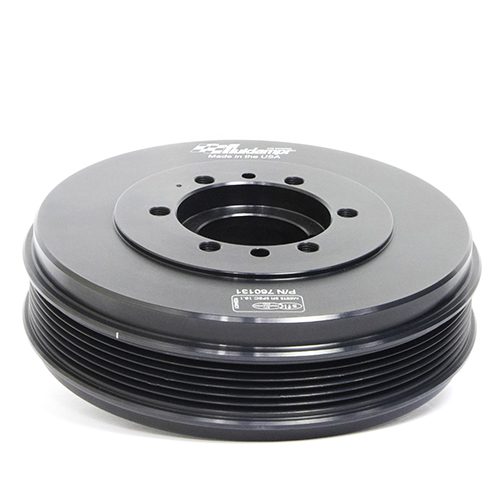

PART # 760131
Fitment 2001-2018 GM / Chevy 6.6L Duramax
Bore Diameter 1.927"
Degree Markings Engraved
Engine Balance External
Finish Black Zinc
Keyway Dual; (5mm, 1/4")
Length 2.116"
Material Steel

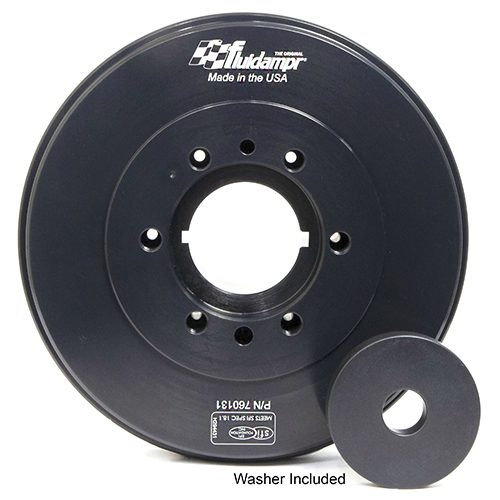

Mounting Hardware Included Yes. Washer.
Outside Diameter 7-3/4"
Safety Rating SFI 18.1
Weight / Rotating Weight 22.3 lbs / 14.7 lbs
