Competition Series

Tractor Pulling
Universal Fit For Taper Lock Hub

Tractor pulling engine builders long favored Fluidampr parent company, Vibratech TVD heavy duty viscous dampers. Fluidampr now takes it further with 35 years of experience developing dampers for professional motorsports. The result is exceptional, long lasting crankshaft vibration control for today’s top Pro Pullers.

In comparison, the new Fluidampr tractor pulling damper surpasses the Vibratech TVD heavy duty damper in competition use. The Fluidampr design meets SFI 18.1 safety specifications for high rpm structural rotational integrity. Inertia mass is roughly 10% greater to optimize vibration control for higher torque. Additional internal components compensate for greater thrust loads. Overall, thicker steel and laser welding the housing creates a single piece design for superior durability under high torque and horsepower.

The damper also features a more robust, 12 bolt on 4.5” b.c. mounting flange. The universal fit design requires a taper lock hub with 3.25” pilot.

Download Competition Series Media Kit (11MB.zip)  Download Competition Series Informational Flyer

PART # 1243101
Fitment Tractor Pulling. Universal Fit For Taper Lock Hubs.
Bore Diameter 3.25
Degree Marking Range TDC to 180 at 2 degree increments. Clockwise and counter-clockwise.
Degree Markings Yes
Engine Balance Internal
Finish Black Zinc
Keyway NA
Length 1.61"
Material Steel
Mounting Hardware Included No
Outside Diameter 12-13/32"
Safety Rating SFI 18.1
Weight / Rotating Weight 37 lbs / 24.4 lbs
Diesel Accessories
Where To Buy
PART # 1243111
Fitment Tractor Pulling. Universal Fit For Taper Lock Hubs. No pre-drilled bolt holes.
Bore Diameter 3.25
Degree Marking Range TDC to 180 at 2 degree increments. Clockwise and counter-clockwise.
Degree Markings Yes
Engine Balance Internal
Finish Black Zinc
Keyway NA
Length 1.61"
Material Steel
Mounting Hardware Included No
Outside Diameter 12-13/32"
Safety Rating SFI 18.1
Weight / Rotating Weight 37 lbs / 24.4 lbs
Diesel Accessories
Where To Buy

Tractor Pulling

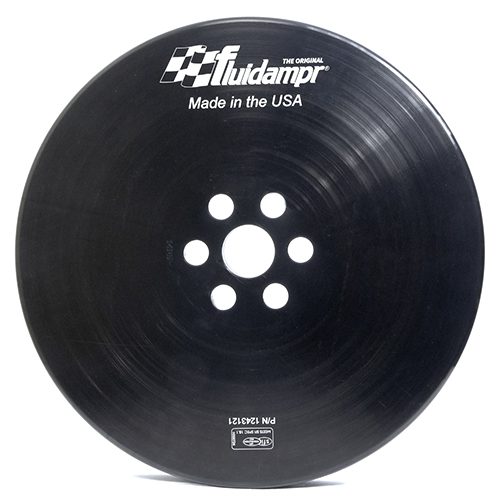

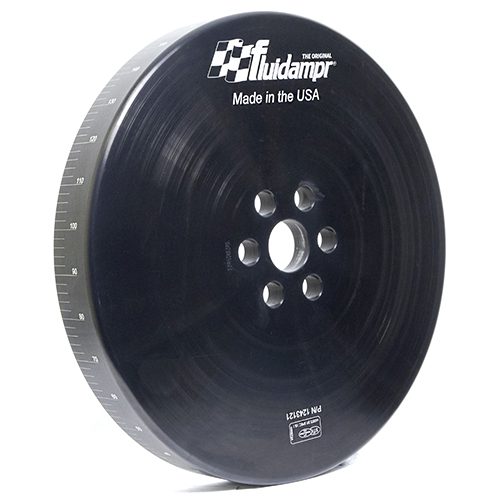

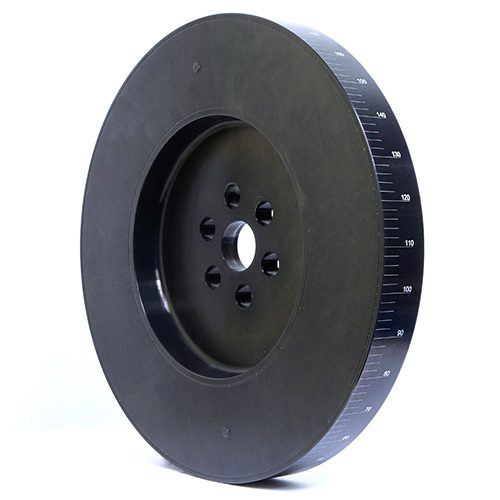

PART # 1243121
Fitment Tractor Pulling. 6 Bolt Hole with 1.381" Center Hole.
Bore Diameter 1.381"

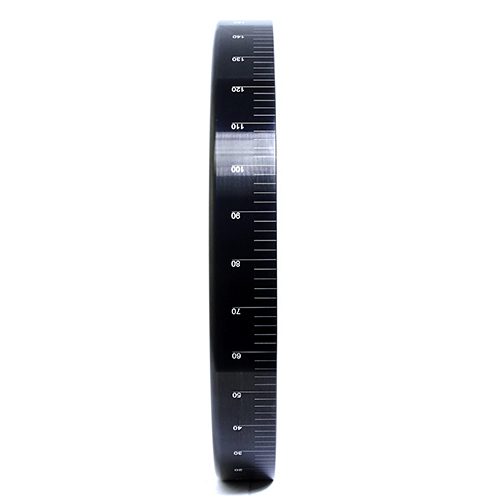

Degree Marking Range TDC to 180 at 2 degree increments. Clockwise and counter-clockwise.
Degree Markings Yes
Engine Balance Internal
Finish Black Zinc
Keyway NA
Length 1.65"
Material Steel
Mounting Hardware Included No
Outside Diameter 12-13/32"
Safety Rating SFI 18.1
Weight / Rotating Weight 38 lbs / 25 lbs
Diesel Accessories
Where To Buy

Cummins

PART # 960341
Fitment 1989 and Up. 5.9L Cummins. Competition series - no pulley.
Bore Diameter NA
Degree Marking Range TDC to 180 at 1 degree increments. Clockwise and counter-clockwise.
Degree Markings Yes
Engine Balance Internal
Finish Black Zinc
Keyway Drill pin kit #300002 recommended over 3500RPM
Length 1.363"
Material Steel
Mounting Hardware Included No. Recommend Fluidampr #300002 over 3,500rpm; #300007 up to 700hp / 1,250ft-lbs; #300008 above 700hp / 1,250ft-lbs.
Outside Diameter 10"
Safety Rating SFI 18.1
Weight / Rotating Weight 25.0 lbs / 16.7 lbs
Installation Instructions
Diesel Accessories
Where To Buy
PART # 980301
Fitment 2003-2018 5.9L / 6.7L Cummins common rail. Competition series - no pulley.
Bore Diameter NA
Degree Marking Range TDC
Degree Markings Yes
Engine Balance Internal
Finish Black Zinc
Keyway Drill pin kit #300002 recommended over 3500RPM
Length 1.90"
Material Steel
Mounting Hardware Included No. Recommend Fluidampr #300002 over 3,500rpm; #300007 up to 700hp / 1,250ft-lbs; #300008 above 700hp / 1,250ft-lbs.
Outside Diameter 10-3/32"
Safety Rating SFI 18.1
Weight / Rotating Weight 28.8 lbs / 19 lbs
Installation Instructions
Diesel Accessories
Where To Buy
