Diesel Accessories
Champion diesel engine builders continue to push new records using a Fluidampr Performance Diesel damper. To exceed their requests to provide the industry’s leading damper, Fluidampr proudly offers new hardware kits and installation recommendations to further achieve long term performance and durability. These kits were developed and tested in conjunction with several leading competitors of the Ultimate Callout Challenge.
| Part No. | Description | Application | Size | WT. (Lbs.) |
|---|---|---|---|---|
| 300002 | Dodge Cummins Drill Pin Kit |
Drill fixture, drill bit, reamer, 3 dowel pins | NA | 1.0 |
| 300003 | Dodge Cummins Sensor Relocation Kit | Use on 12V Trucks 1992-1998 |
NA | 2.0 |
| 300007 | Cummins High Strength Bolt Kit | 2003+ Dodge/Ram 5.9L / 6.7L Cummins up to 700hp / 1,250lb-ft torque | NA | 1.0 |
| 300008 | Cummins Full Power Kit |
1989+ Dodge/Ram 5.9L / 6.7L Cummins above 700hp / 1,250 lb-ft torque | NA | 2.0 |
| 300009 | Cummins 5.9L 12v & 24v High Strength Bolt Kit | 1989-2002 Dodge/ Ram 5.9L 12v & 24v Cummins up to 700hp / 1,250 lb-ft torque | NA | 1.0 |
| 300010 | Duramax 6.6L High Strength Bolt Kit | 2001+ GM/Chevy 6.6L Duramax | NA | 1.0 |
| 300014 | Power Stroke 6.0L High Strength Bolt Kit | 2003-2007 Ford 6.0L Power Stroke | NA | 1.0 |
| 300015 | Power Stroke 6.4L High Strength Bolt Kit | 2008-2010 Ford 6.4L Power Stroke | NA | 1.0 |
| 300016 | Power Stroke 6.7L High Strength Bolt Kit | 2011-Present Ford 6.7L Power Stroke | NA | 1.0 |
| 300019 | Duramax Drill Pin Kit | 2001-Present GM/Chevy Duramax 6.6L | NA | 1.0 |
| 960341-FW01 | Cummins Friction Washer - 1pc | 1989+ Dodge/Ram 5.9L / 6.7L Cummins | NA | 0.25 |
| 960341-FW03 | Cummins Friction Washer - 3pc | 1989+ Dodge/Ram 5.9L / 6.7L Cummins | NA | 0.25 |
| 760131-FW01 | Duramax Friction Washer - 1pc | 2001+ GM/Chevy 6.6L Duramax | NA | 0.25 |
| 760131-FW03 | Duramax Friction Washer - 3pc | 2001+ GM/Chevy 6.6L Duramax | NA | 0.25 |
| 870201-FW01 | Power Stroke Friction Washer - 1pc | 2003-2007 Ford 6.0L Power Stroke | NA | .25 |
| 870201-FW03 | Power Stroke Friction Washer - 3pc | 2003-2007 Ford 6.0L Power Stroke | NA | .25 |
| 800211-FW01 | Power Stroke Friction Washer - 1pc | 2008-2010 Ford 6.4L Power Stroke | NA | .25 |
| 800211-FW03 | Power Stroke Friction Washer - 3pc | 2008-2010 Ford 6.4L Power Stroke | NA | .25 |
| 800221-FW01 | Power Stroke Friction Washer - 1pc | 2011-Present Ford 6.7L Power Stroke | NA | .25 |
| 800221-FW03 | Power Stroke Friction Washer - 3pc | 2011-Present Ford 6.7L Power Stroke | NA | .25 |
| 717675 | Ford PowerStroke 6.0L Dual Alternator Pulley | Pulley and Hardware | 8" | 9.0 |
Cummins Drill Pin Kit
For high performance 5.9L and 6.7L Cummins® engines that exceed 3,500rpm, Fluidampr recommends the damper be pinned to the crankshaft. Highly recommended for drag racing and sled pulling. The current Fluidampr drill pin kit (p/n 300002) is upgraded from a roll pin to a stronger .0005” press fit steel dowel pin(s). New to the kit is a smaller 7.7mm drill and reamer tool. A drill fixture is included for accurate alignment with the damper’s pre-drilled pin hole(s).
Part number – 300002. $54.55 MSRP.
High Strength Bolt Kits
For secure installation and peace-of-mind when further modifying your diesel engine, a new High Strength Bolt Kit is recommended. Available for 5.9L / 6.7L Cummins, 6.6L Duramax and 6.0L / 6.4L /6.7L Power Stroke applications up to 700 hp / 1,250 ft-lbs torque . Each kit features heat treated, high strength extended length bolt(s) from ARP® and a .010” thick diamond impregnated friction washer.
Cummins 5.9L and 6.7L engines above 700 hp / 1,250 ft-lbs torque must use Fluidampr Cummins Full Power Kit (p/n 300008).
p/n 300007. 2003+ 6.7L / 5.9L Cummins.
$133.95 MSRP.
p/n 300009. 1989-2002 5.9L 12v/24v Cummins.
$133.95 MSRP.
p/n 300010. 2001+ 6.6L Duramax.
$83.95 MSRP.
p/n 300014. 2003-2007 Power Sttoke.$153.00 MSRP.
p/n 300015. 2008-2010 Power Stroke.$153.00 MSRP.
p/n 300016. 2011-Present Power Stroke.$153.00 MSRP.
Friction Washers
Fluidampr recommends replacing the diamond impregnated friction washer in the Fluidampr Cummins Full Power Kit and the Fluidampr High Strength Bolt & Friction Washer Kit each time the damper is removed. This practice ensures a secure mating surface between the damper and the crankshaft. Available in single or three pack.
p/n 960341-FW01. Cummins Friction Washer. 1 pc.
$51.00 MSRP.
p/n 960341-FW03. Cummins Friction Washer. 3pc.
$138.00 MSRP.
p/n 760131-FW01. Duramax Friction Washer. 1pc.
$51.00 MSRP.
p/n 760131-FW03. Duramax Friction Washer. 3pc.
$138.00 MSRP.
p/n 870201-FW01. Power Stroke Friction Washer. 1pc.
$58.00 MSRP.
p/n 870201-FW03. Power Stroke Friction Washer. 3pc.
$157.00 MSRP.
p/n 800211-FW01. Power Stroke Friction Washer. 1pc.
$58.00 MSRP.
p/n 800211-FW03. Power Stroke Friction Washer. 3pc.
$157.00 MSRP.
p/n 800221-FW01. Power Stroke Friction Washer. 1pc.
$58.00 MSRP.
p/n 800221-FW01. Power Stroke Friction Washer. 1pc. $157.00 MSRP.

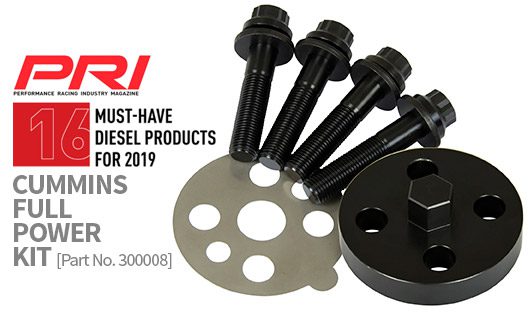

Cummins Full Power Kit
1989 and up 5.9L / 6.7L Cummins performance engine builds above 700 hp / 1,250 ft-lbs torque are recommended to use the new Fluidampr Cummins Full Power Kit. Highly recommended for drag racing and sled pulling. A ½” thick torque plate with textured finish mounts between the damper face and bolts to provide a wider and stronger clamping surface. The torque plate incorporates a 5/8” hex head for barring the engine over. New heat treated, high strength extended length ARP® bolts and a diamond impregnated friction washer are also included. Use in conjunction with Fluidampr Cummins Drill Pin Kit (p/n 300002) for applications above 3,500rpm.
p/n 300008. 1989+ 5.9L / 6.7L Cummins.
$217.95 MSRP.
Frequently Asked Questions
I already have a Fluidampr installed. Should I update my mounting hardware?
If you currently have a Fluidampr installed and exceed 700hp / 1,250 ft-lbs torque, we recommend updating your mounting hardware.
I already have installed a Fluidampr Cummins Drill Pin Kit. Can I update to the new dowel pin fitment?
No. The new dowel pin is smaller and slight press fit.
How do I decide between the High Strength Bolt & Washer Kit or the Full Power Kit?
When in doubt choose the Full Power Kit. Intended for high power competition engines, it will be more than sufficient for street performance applications. It will also provide added peace-of-mind and one less item to upgrade if you pass the 700 hp / 1,250 ft-lbs torque threshold modifying your engine in the future.
